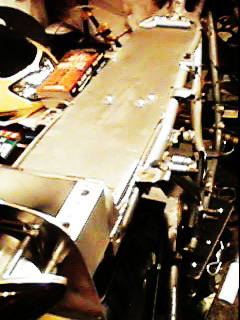

How the assembly is held on the frame

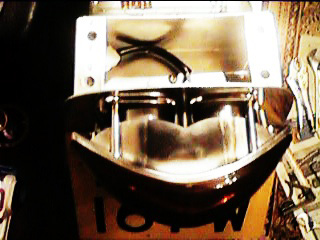

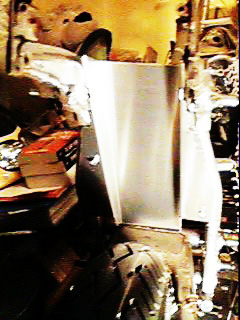

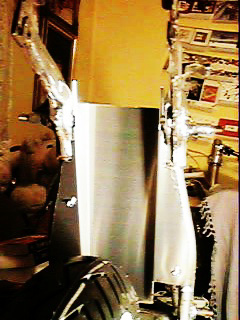

Construction of the tool box, the cables from the rear light will be armoured

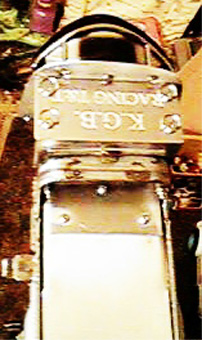

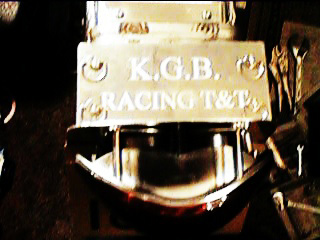

Engraving on the Tool Box Cover showing the company logo

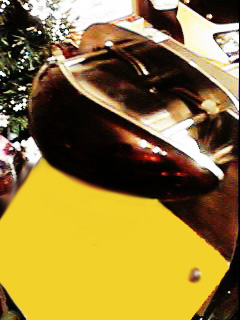

Hayabusa 1300 Tail Lamp fitted with LED type replacement bulbs

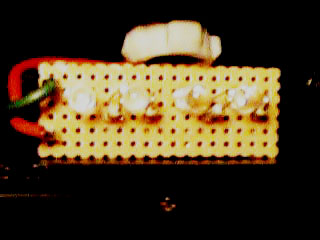

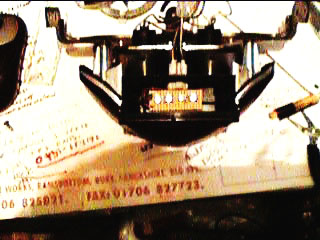

This is the overall assembly of 4 LED's in the Hayabusa tail lamp that illuminate the rear number plate

This is just the Tail lamp from the 1300 Hayabusa fitted with 4 Bright white LED's to illuminate the rear licence plate, the original bulb set up was well known for blowing. The Tail lamp & brake light are also LED clusters as 2 " bulbs "

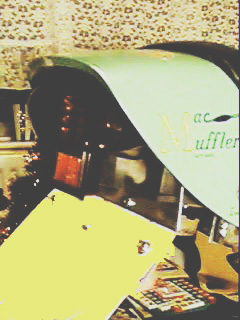

Hayabusa rear lamp sits very nicely under the old Green Bean tail fairing as a test.

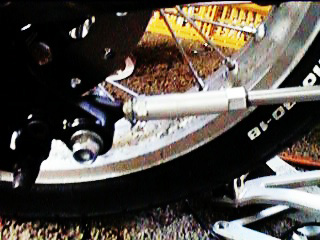

A Ducati suspension strut modified to be a Brake Tie Rod. (12mm * 1.5 pitch LH & RH threads ).Custom made stainless steel centre rod with custom made nuts

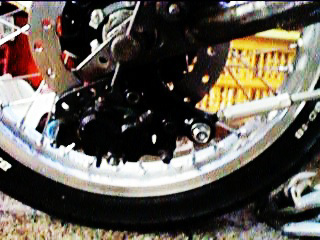

Kawa Brake hanger with modified Ducati Tie Rod ends.

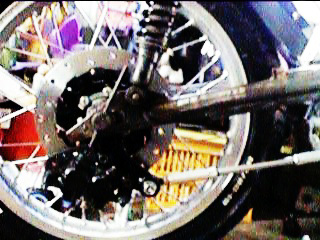

The overall set up

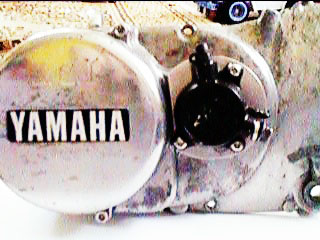

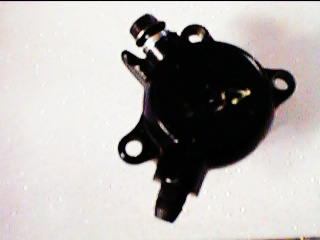

Honda Hydraulic clutch slave unit

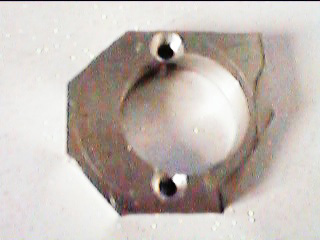

Rough cut clutch spacer to suit RD clutch set up I SCRAPPED this as an idea it looked too ugly when finished

A more artistic solution

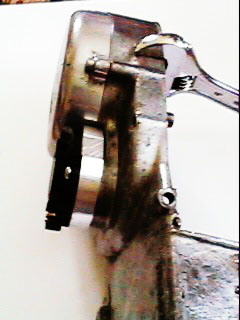

At 16mm thick it still allows the Honda unit to stay inboard of the main rotor housing, Be sure to note the photographers friend the shifting spanner LoL

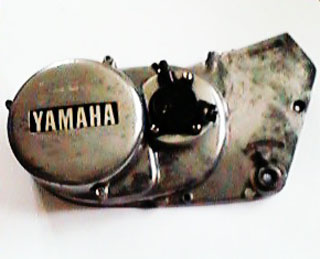

A close up showing the final product
